NSR 316 12G (JBOD/EXPANDER)

Overview

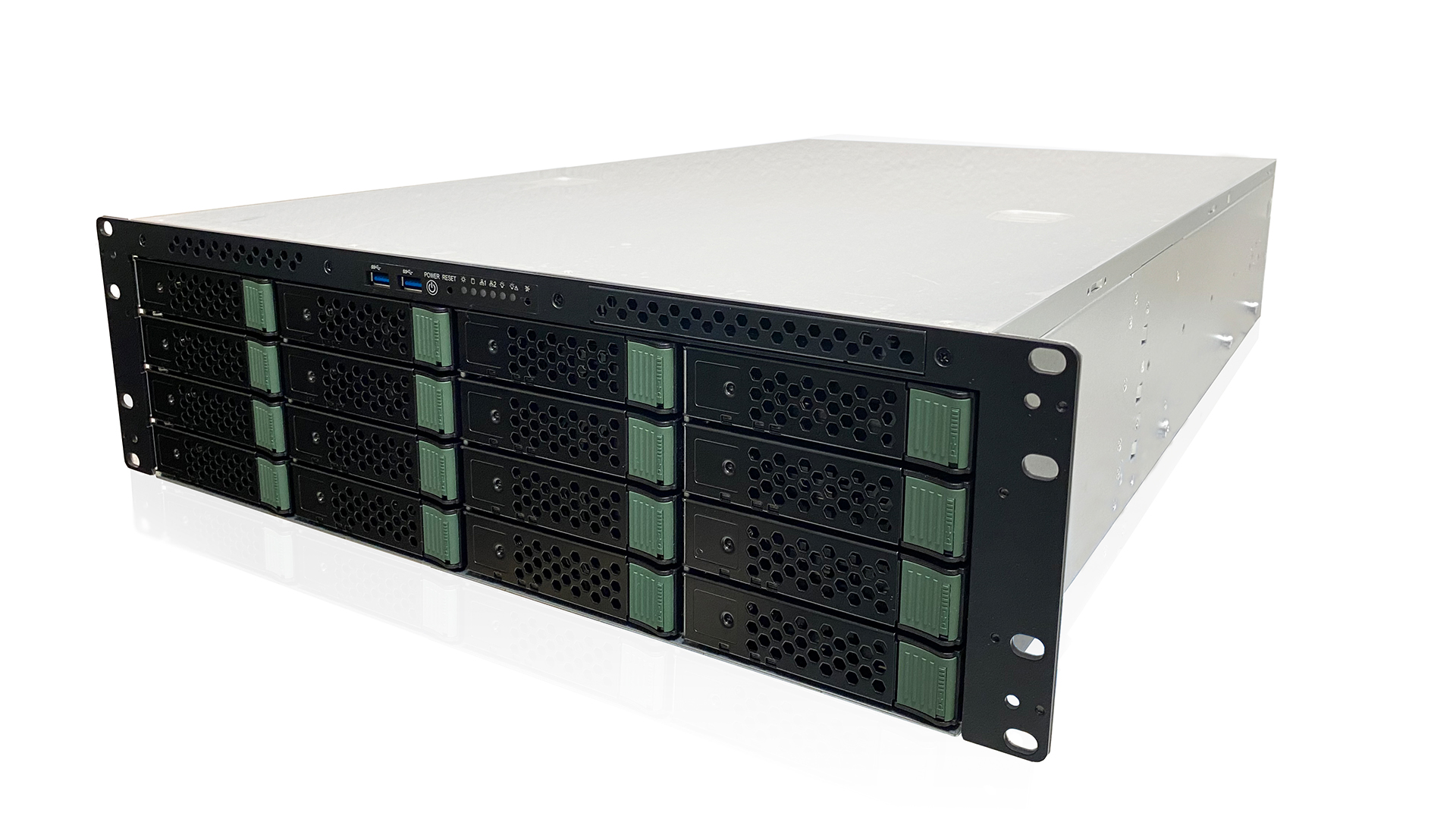

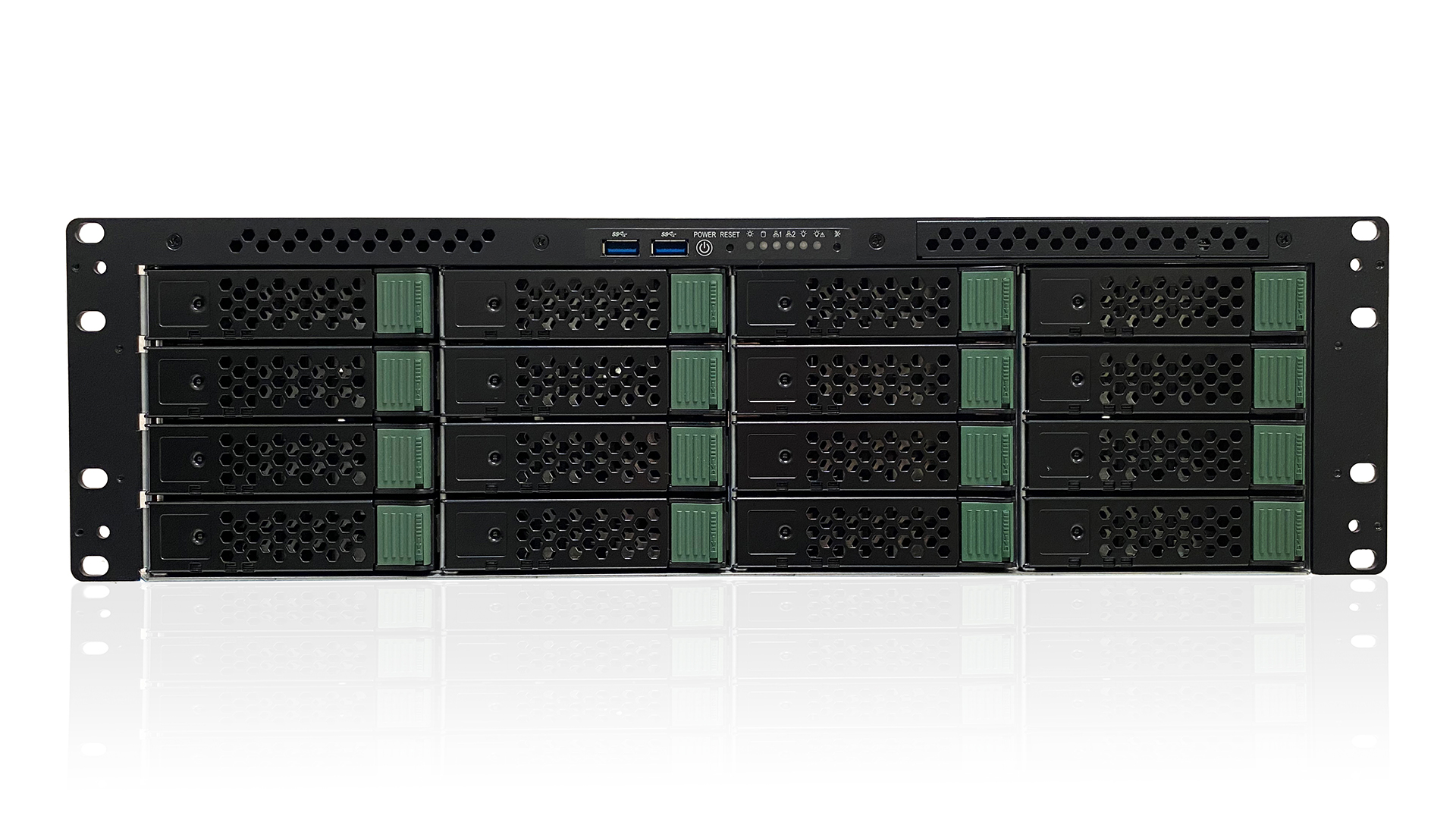

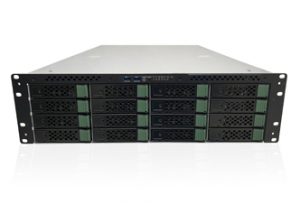

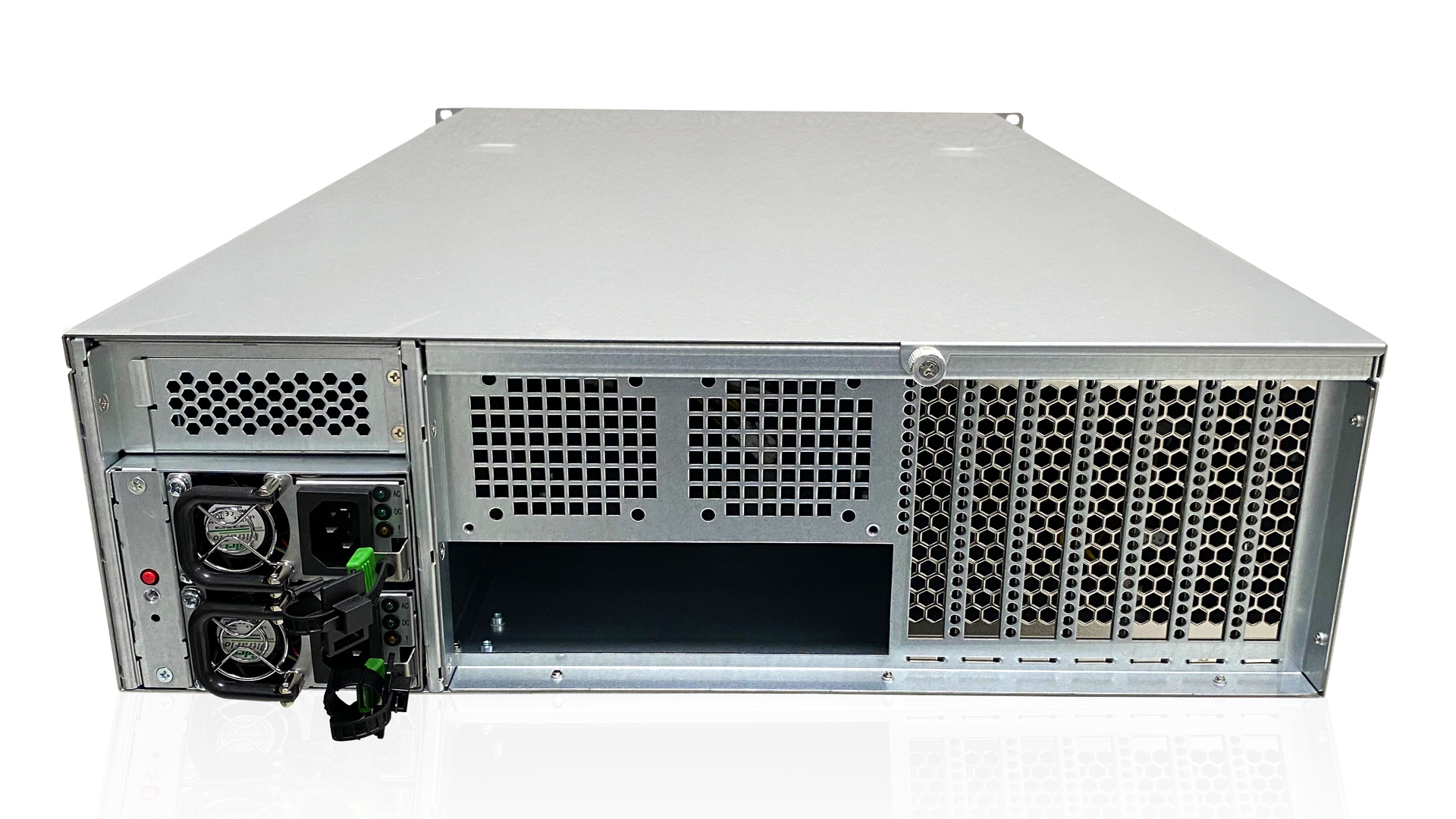

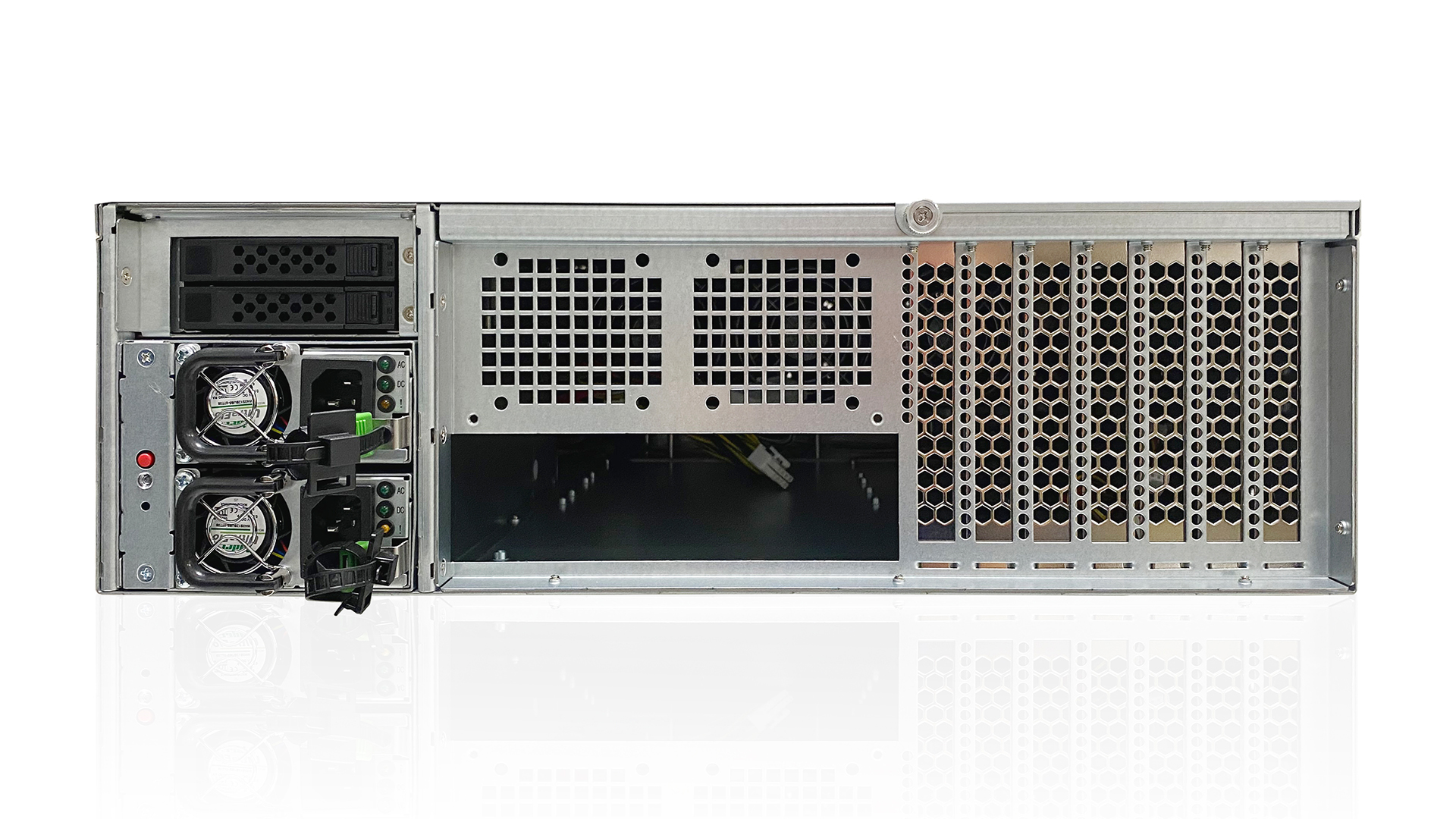

The NSR 316

Ci Design proudly presents this JBOD storage rack mountable enclosure – NSR 316. This model is built to handle high volume data response in an ultra cool thermal environment that maximizes storage server possibilities. This model supports redundant power supplies, hot-swap hard drives, hot-swap fans. This series improves on current enterprise and corporate data center’s scalability.

Downloads

NSR-316-HighResPics-v2_0-(03-26-21) NSR-316-Slide-Rail-Installation-Guide-v1_0-(10-05-11) PCB-12-6555-Setup-Guide-For-LSI-Controllers-v1_0

Product Information Specifications

Key Features

SFF-8644 interface
Fan failure detected by FAN controller board
Maximum open area on drive trays
Drive tray with locking feature
Increased EMI/ESD features
Easy or Hot swap fans mounted on rubber screws(*¹⁾
Front panel power supply fail LED - redundant power(option)
Horizontal oriented backplane
Logo indent on drive tray
Thick gauge sheet metal
Backplane designed to support SAS 12 Gb/s, SATA 6.0 Gb/s(*²⁾
Backplane designed to support solid state drives(*²⁾
High confidence 3 year limited warranty
^(*1 )Fan configuration may vary ^(*2 )Testing to be completed once drives available

Product Specifications

HDD Bays: 16 x 3.5 inch Hot Swap Drive Bays
System Architecture: Supports SAS 12 Gb/s, SATA 6Gb/s HDDs
Easy Swap/Redundant Components: HDDs, power supplies and cooling fans
Maximum Capacity/Enclosure: Up to 128 TB with 8 TB HDD
Dimensions: 3U Form Factor - 5.25 inch (H) x 19.00 inch (W) x 28.00 inch(D)
Power Requirements:

Ci Design and iStoragePro are registered trademarks of Commercial and Industrial Design Co., Inc. All rights reserved. All other trademarks, trade names or company names referenced herein are used for identification purposes only, and are the property of their respective owners.

All dates, specifications, features, and figures specified on this page are introductory and based on ideal conditions, may vary based on configuration, and are subject to change without notice.
